Atomos AtomX CAST 4x HDMI Live Switcher & Streaming Dock for Ninja V / V+
Atomos AtomX CAST 4x HDMI Live Switcher & Streaming Dock for Ninja V / V+ - image 2
Atomos AtomX CAST 4x HDMI Live Switcher & Streaming Dock for Ninja V / V+ - image 3
Atomos AtomX CAST 4x HDMI Live Switcher & Streaming Dock for Ninja V / V+ - image 4
Atomos AtomX CAST 4x HDMI Live Switcher & Streaming Dock for Ninja V / V+ - image 5
Atomos AtomX CAST 4x HDMI Live Switcher & Streaming Dock for Ninja V / V+
Atomos AtomX CAST 4x HDMI Live Switcher & Streaming Dock for Ninja V / V+ - image 2
Atomos AtomX CAST 4x HDMI Live Switcher & Streaming Dock for Ninja V / V+ - image 3
Atomos AtomX CAST 4x HDMI Live Switcher & Streaming Dock for Ninja V / V+ - image 4
Atomos AtomX CAST 4x HDMI Live Switcher & Streaming Dock for Ninja V / V+ - image 5

Atomos AtomX CAST 4x HDMI Live Switcher Dock for Ninja V / V+ · 1080p60 · USB Webcam

Sold out
10,850 ฿ - 10,850 ฿
10,850 ฿
10,850 ฿ - 10,850 ฿
10,850 ฿
Availability:
Out of stock
SKU ATMS-ATX-CAS
Selected option: Default Title
Secure checkout · Payment options shown at checkout

Thailand delivery ฿100 · Free from ฿5,000
Final delivery options and charges are shown at checkout.

Delivery details · Returns policy

Unsure which option fits your gear? Ask our team

Manufacturer warranty

Genuine products. Returns or exchanges due to a change of mind are not accepted. Contact us promptly if your item is damaged or you receive an incorrect item.

Delivery

Thailand delivery is ฿100, or free for orders of ฿5,000 or more. Final delivery options and charges are shown at checkout. Contact our team for the delivery timing of your items.

Warranty & after-sales support

Warranty follows the manufacturer’s or distributor’s policy. Returns or exchanges due to a change of mind are not accepted. Box contents follow the manufacturer’s list; please check the details for your model before ordering. Contact us promptly if your item is damaged or you receive an incorrect item.

Atomos AtomX CAST — Turn the Ninja V/V+ into a Portable 4-Camera Live Production Studio

AtomX CAST is a modular dock that plugs into the AtomX port on the back of the Atomos Ninja V or Ninja V+ and turns it into a "Ninja CAST": a 4-input HDMI switcher, Multiview monitor and broadcast-grade recorder in a single unit, with no computer required. It suits live streaming, seminars, podcasts and multi-camera shoots.

Key Features

  • Turns the Ninja V/V+ into a 4 x HDMI input switcher
  • Graphic overlays, logos and lower thirds for branding your content
  • Picture in Picture (PiP) effect with any input, with adjustable size and position
  • WebCAST: plug-and-play UVC connection to Zoom, MS Teams, Skype, OBS and other software
  • BroadCAST: professional switching with recording to Apple ProRes and Avid DNx
  • MultiCAST: record and stream at the same time, while also sending video to a display
  • Control via touchscreen and illuminated buttons with LED status lights (Program / Preview Tally)
  • Separate HDMI outputs: a Program Out dedicated to the CAST, plus the multifunction HDMI on the Ninja V/V+ for Multiview, Preview or Program
  • Supports embedded HDMI audio, analog audio input and Audio Follow Video mode
  • Quick and reliable to set up: just connect, switch and stream

Best For

  • Live selling, or multi-angle live streams on Facebook / YouTube
  • Online meetings and Zoom / MS Teams seminars that need high-quality video
  • Podcasts and interview shows with 2–4 cameras
  • Events, church services and online teaching that need a compact switcher setup
  • Game streaming by connecting a console or computer through HDMI

Specifications

Compatibility Atomos Ninja V / Ninja V+ (via the AtomX Expansion port)
Video Input 4 x HDMI 1.4b up to 1080p60, mixed resolutions supported
Bit Depth / Chroma 8/10-bit, YCbCr 4:2:0 and 4:2:2

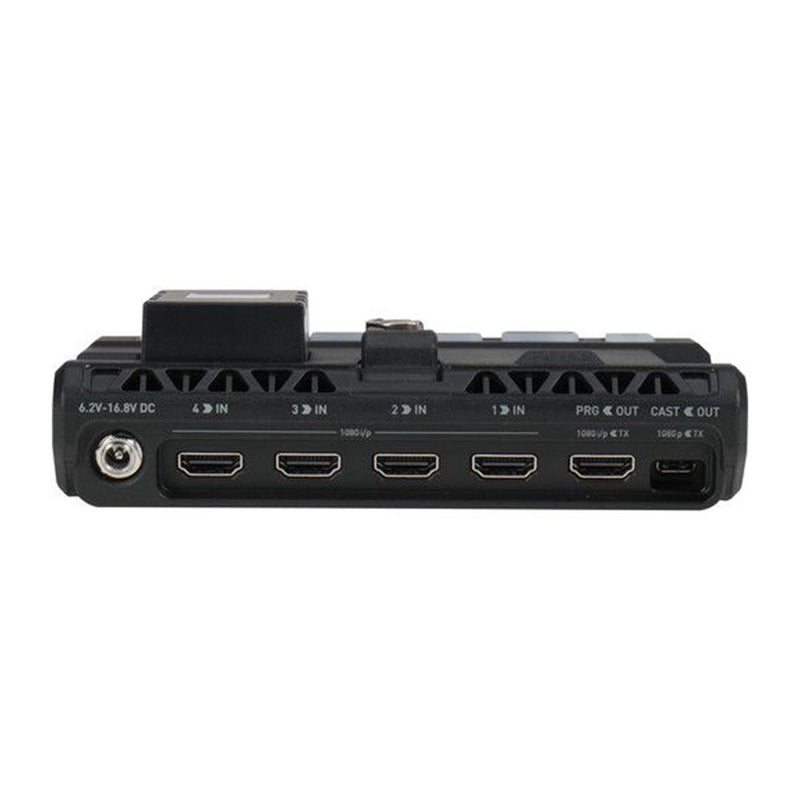

HDMI Out (on CAST) 1 x HDMI 1.4b up to 1080p60 (Program only)
HDMI Out (on Ninja) Program / Preview / Multiview
USB UVC (Webcam) USB-C up to 1080p30
Audio HDMI Embedded 2ch 24-bit per input, analog input, Audio Follow Video
Recording Apple ProRes and Avid DNx onto the Ninja V/V+
Controls 4 input select buttons + 4 function buttons with Program/Preview lights
Power DC 6.2–16.8V (Locking DC Jack 5.5 x 2.1 mm), D-Tap via optional cable
Mounting Bottom 1/4"-20 or 3/8" with anti-rotation point
Cooling Passive Cooling (fanless, silent)
Body ABS / Polycarbonate with locking arm for the Ninja monitor
Dimensions (W x H x D) 129 x 49 x 160 mm (excluding the Ninja monitor)
Weight 485 g (excluding the Ninja monitor)
SSDmini Supported (uses the AtomX SSD Mini Handle included in the box)

In the Box

  • Atomos AtomX CAST for Ninja V / Ninja V+
  • USB Type-C Cable
  • AtomX SSD Mini Handle

FAQ

  • Q: Does the box include a Ninja V monitor?
    A: No. The AtomX CAST is an add-on dock and must be used with an Atomos Ninja V or Ninja V+ that you already own.
  • Q: Do I need to install drivers to use it with Zoom or OBS?
    A: No. It connects over USB-C as a UVC device, so your computer sees it as a webcam straight away, with video up to 1080p30.
  • Q: What does it use for power?
    A: A DC adapter (6.2–16.8V), such as the one supplied with the Ninja V/V+. The CAST passes power on to the monitor. You can also use a D-Tap battery via an optional cable (adapter not included in the box).

Atomos AtomX CAST — a multi-camera studio you can take anywhere
