Atomos Shinobi 7 RX 7" HDR Monitor Receiver · 2200 nits · 4K60 HDMI · 3G-SDI · Wi-Fi

Atomos Shinobi 7 RX — 7-inch HDR Monitor with Built-in Wireless Video Receiver

The Atomos Shinobi 7 RX is a 7-inch, 2,200 nits HDR monitor with a built-in wireless video receiver. Pair it with the Atomos TX to view camera video instantly without cables. It suits directors, camera assistants (AC), clients on set and photographers, on both large productions and run-and-gun shoots.

Key Features

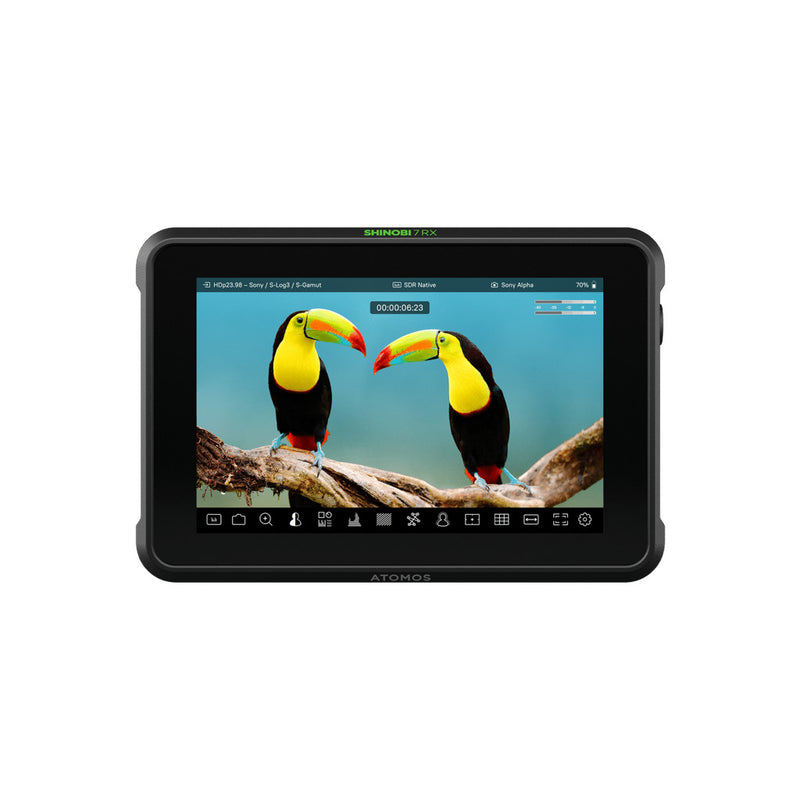

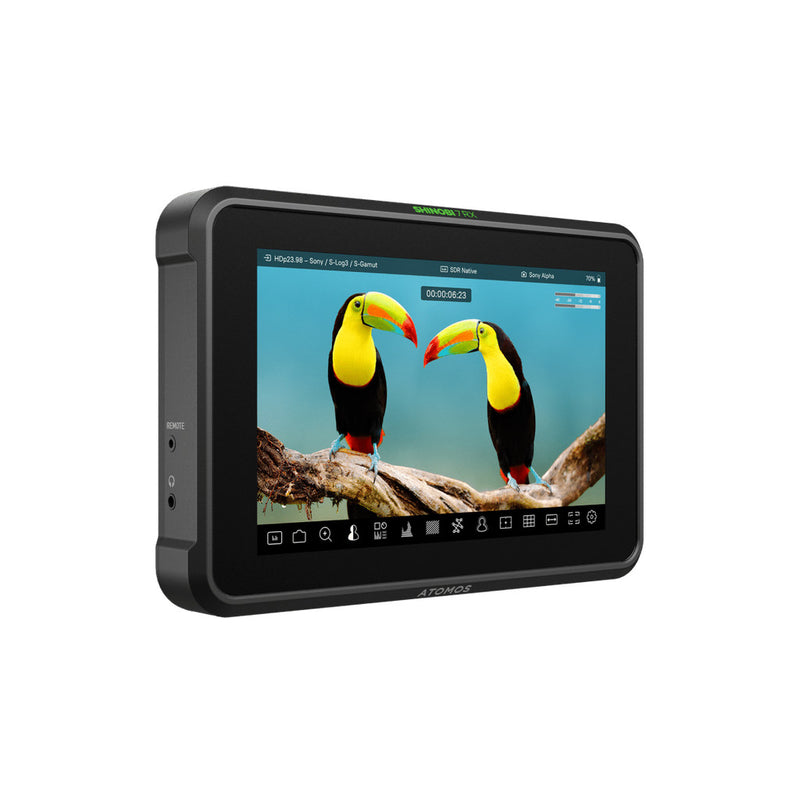

• 7-inch HDR touchscreen with 1920 x 1200 pixel resolution (16:10 aspect ratio)
• Up to 2,200 nits brightness, clearly visible even when shooting outdoors in bright sunlight
• Built-in wireless receiver that pairs with the Atomos TX, with latency under 60ms, video up to 4Kp30 / 1080p60, a range of up to approximately 300 meters, and support for RTSP H.264 streams
• HDMI 2.0 input/output supporting up to 4K60p and 3G-SDI supporting up to 1080p60, with loop-out and HDMI/SDI cross conversion
• Professional monitoring tools on AtomOS: EL Zone, ARRI False Color, Atomos False Color, Waveform, Vectorscope, RGB Parade, Histogram, Zebra and 4 Focus Peaking modes
• Camera control over USB-C (for supported cameras): adjust ISO, aperture, shutter speed and white balance, and start or stop recording from the screen
• Touch-to-Focus: tap the screen to have the camera focus on the chosen point (for supported cameras)
• Real-time HDR display from Log / PQ / HLG signals in SDR, HLG, PQ, 709 LUT and User LUT (.cube 17/33-point) modes
• View anamorphic footage with a De-squeeze function supporting 1.25x to 2x

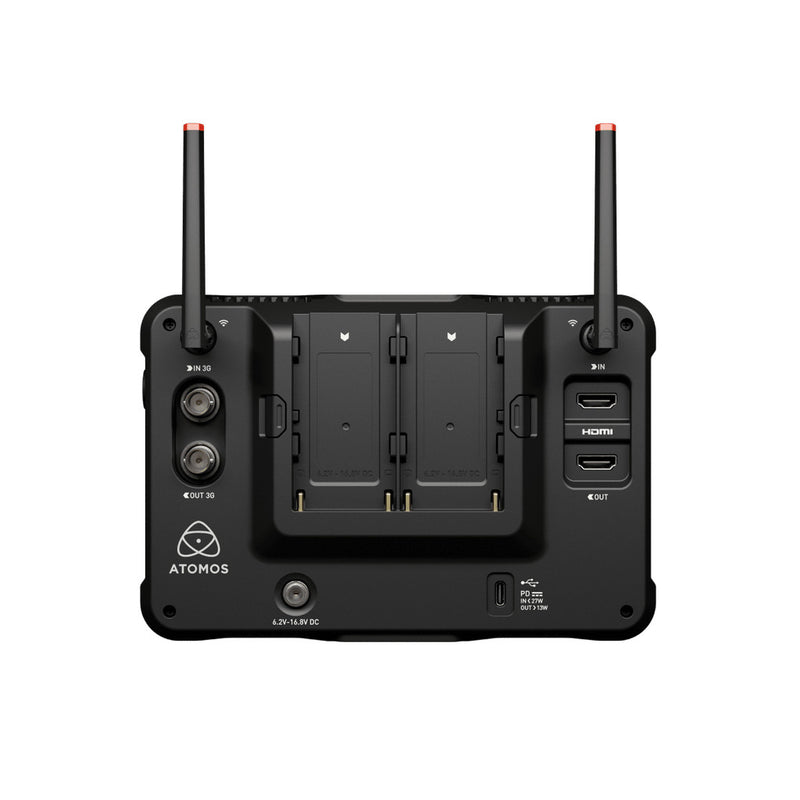

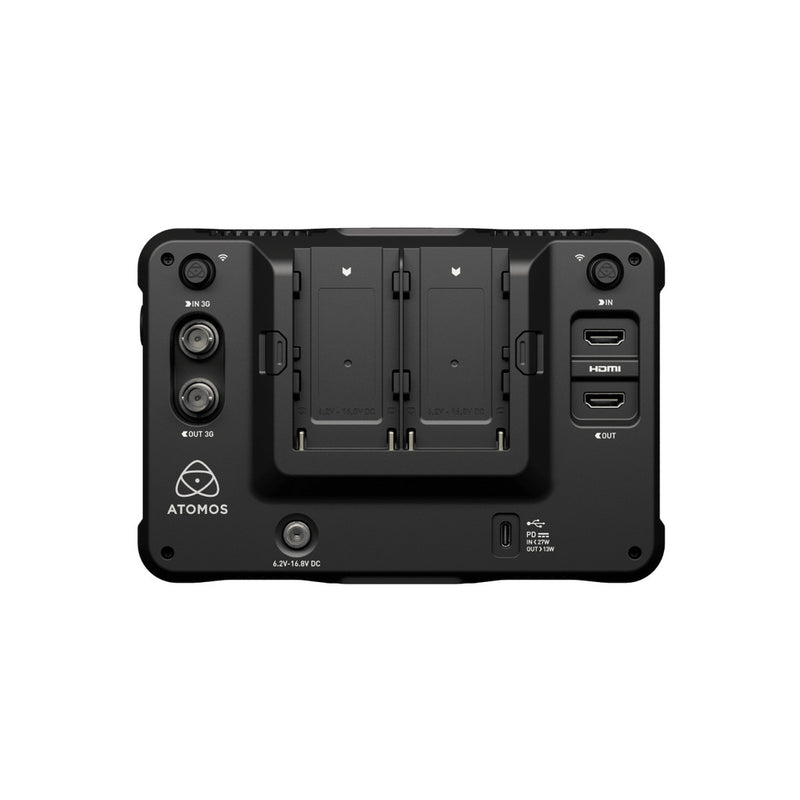

• 3.5mm headphone jack and dual NP-F battery slots for continuous battery swapping, or power via USB-C PD
• Lightweight at just 580 g (excluding batteries and antenna)

Best For

• Director or client monitors that need to view camera video wirelessly
• Camera assistants (Focus Puller / AC) who need to check focus and exposure in real time
• Outdoor shoots that need a high-brightness monitor
• Cinema and mirrorless cameras used via HDMI or SDI
• Film shoots using Log / HDR and anamorphic lenses

Specifications

In the Box

• Shinobi 7 RX monitor x 1
• Wi-Fi Antenna
• Colored Antenna Tips x 5
• Antenna Caps x 2
• 1 m USB-C 2.0 cable x 1
• Quick Start Guide x 1

FAQ

• Q: Do I need to buy an Atomos TX transmitter as well?
  A: To receive video wirelessly, you need to use it with an Atomos TX. If you connect directly to the camera with a cable, it works right away as an HDMI/SDI monitor.
• Q: Which batteries can I use?
  A: It takes 2 NP-F batteries (Sony L-series), or you can power it via USB-C PD.
• Q: Can it control every camera?
  A: It supports cameras that can be controlled over USB-C, such as Canon, Fujifilm, Nikon, Panasonic and some Sony models. Check the latest compatibility list on the Atomos website before buying.

Atomos Shinobi 7 RX — a big, bright screen for wireless viewing anywhere on set
