Blackmagic Design ATEM Mini Pro Live Switcher
Blackmagic Design ATEM Mini Pro Live Switcher - image 2
Blackmagic Design ATEM Mini Pro Live Switcher - image 3
Blackmagic Design ATEM Mini Pro Live Switcher
Blackmagic Design ATEM Mini Pro Live Switcher - image 2
Blackmagic Design ATEM Mini Pro Live Switcher - image 3

Blackmagic Design ATEM Mini Pro Live Switcher · 4 HDMI · Multiview · Ethernet Streaming

Sold out
11,100 ฿ - 11,100 ฿
11,100 ฿
11,100 ฿ - 11,100 ฿
11,100 ฿
Availability:
Out of stock
SKU BCKMGC-SWTCHR-PRO
Selected option: Default Title
Secure checkout · Payment options shown at checkout

Thailand delivery ฿100 · Free from ฿5,000
Final delivery options and charges are shown at checkout.

Delivery details · Returns policy

Unsure which option fits your gear? Ask our team

Manufacturer warranty

Genuine products. Returns or exchanges due to a change of mind are not accepted. Contact us promptly if your item is damaged or you receive an incorrect item.

Delivery

Thailand delivery is ฿100, or free for orders of ฿5,000 or more. Final delivery options and charges are shown at checkout. Contact our team for the delivery timing of your items.

Warranty & after-sales support

Warranty follows the manufacturer’s or distributor’s policy. Returns or exchanges due to a change of mind are not accepted. Box contents follow the manufacturer’s list; please check the details for your model before ordering. Contact us promptly if your item is damaged or you receive an incorrect item.

Blackmagic Design ATEM Mini Pro – 4-Camera Live Switcher with Multiview and Ethernet Streaming

ATEM Mini Pro is a compact video switcher from Blackmagic Design that puts everything for professional-level live production in a single unit. Connect cameras or computers through 4 HDMI inputs, switch the picture instantly with the buttons, and watch every signal at once on one screen with Multiview. It streams directly to YouTube, Facebook and Twitch over a LAN cable and can record H.264 files to a USB drive while you are live. It suits live selling, seminars, podcasts, church and event productions, and online teaching.

Key Features

  • 4 HDMI Inputs – Connect 4 cameras or computers at the same time. Every input converts the signal automatically, so cameras of different models and resolutions can be used together.
  • Built-in Multiview – See all 4 cameras, plus Preview, Program, audio levels and streaming/recording status, on a single HDMI display (a feature the standard ATEM Mini does not have).
  • Live Streaming over Ethernet – Send the live signal directly to YouTube Live, Facebook Live, Twitch and other RTMP-compatible platforms without a computer.
  • Record While Live – Record H.264 files to a USB Flash Drive or SSD through the USB-C port, ready to edit or upload straight away.
  • Instant Webcam Use – Connect USB-C to a computer and use it with Zoom, Microsoft Teams, Skype, OBS, XSplit and Wirecast with no driver installation, at up to 1080p60.
  • Built-in Fairlight Audio Mixer – Adjust each channel with a 6-band EQ, compressor, limiter and noise gate.
  • Two 3.5mm Microphone Inputs – Connect a live microphone or an additional wireless microphone directly.
  • Professional Effects and Graphics – Mix, Dip, Wipe and DVE transitions, Picture-in-Picture, Chroma Key (Green Screen) and Luma Key.
  • 20-Image Media Pool (RGBA) – Store show-opening graphics, titles and logos and call them up instantly during a live show.
  • Blackmagic Camera Control over HDMI – Adjust Pocket Cinema Camera 4K/6K settings directly from the switcher, with tally.
  • Free ATEM Software Control – Works on both Mac and Windows and gives full control of switching, audio, graphics and streaming settings.
  • Small and Portable – Easy-to-use buttons, suitable for both studio work and location shoots.

Specifications

Brand Blackmagic Design
Model ATEM Mini Pro

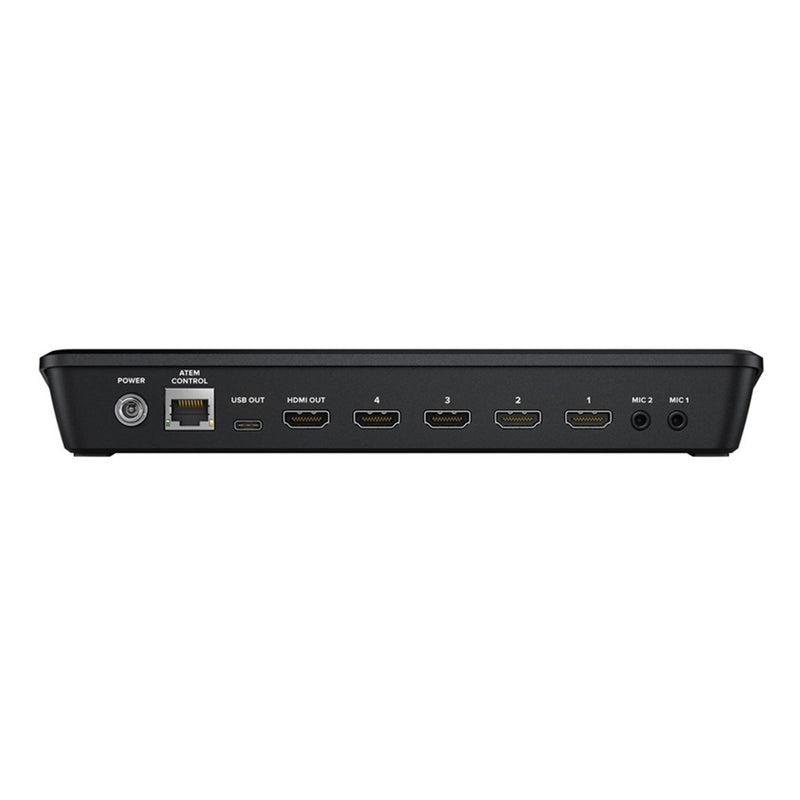

Video Input HDMI Type A × 4 (automatic format conversion on every input)
Video Output HDMI Type A × 1 (selectable: Program / Multiview / Input)
Multiview Yes – shows 4 Inputs + Preview + Program with audio meters and status
Video Formats Up to 1080p60 (supports 1080p23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60)
Processing 10-bit
USB USB-C × 1 – Webcam Output (UVC) up to 1080p60 or recording to a USB drive
Recording H.264 to a USB Flash Drive / SSD
Live Streaming Ethernet (RTMP) – YouTube, Facebook, Twitch and more
Ethernet 10/100/1000 BaseT for streaming and control
Audio Input 3.5mm Stereo × 2
Audio Mixer Fairlight – 6-band EQ, Compressor, Limiter, Expander/Gate
Keyer Upstream Keyer × 1 (Chroma / Luma / Pattern / DVE), Downstream Keyer × 2
Transitions Mix, Dip, Wipe, DVE
Media Pool 20 RGBA still images
Camera Control Via HDMI for Blackmagic Pocket Cinema Camera
Software ATEM Software Control (Mac / Windows)
Power 12V DC (adapter in the box)

In the Box

  • ATEM Mini Pro × 1
  • Power Supply 12V × 1
