Blackmagic Design PYXIS 6K Cinema Box Camera (L-Mount) · Full Frame · BRAW · 12G-SDI

Name: Blackmagic Design PYXIS 6K Cinema Box Camera (L-Mount) · Full Frame · BRAW · 12G-SDI
Brand: Blackmagic Design
SKU: BCKMGC-PYXIS6K-L
Price: 72600.0 THB
Availability: OutOfStock

Sold out

72,600 ฿ - 72,600 ฿

72,600 ฿

72,600 ฿ - 72,600 ฿

72,600 ฿

Availability:

Out of stock

SKU BCKMGC-PYXIS6K-L

Manufacturer warranty

Genuine products. Returns or exchanges due to a change of mind are not accepted. Contact us promptly if your item is damaged or you receive an incorrect item.

Delivery

Thailand delivery is ฿100, or free for orders of ฿5,000 or more. Final delivery options and charges are shown at checkout. Contact our team for the delivery timing of your items.

Warranty & after-sales support

Warranty follows the manufacturer’s or distributor’s policy. Returns or exchanges due to a change of mind are not accepted. Box contents follow the manufacturer’s list; please check the details for your model before ordering. Contact us promptly if your item is damaged or you receive an incorrect item.

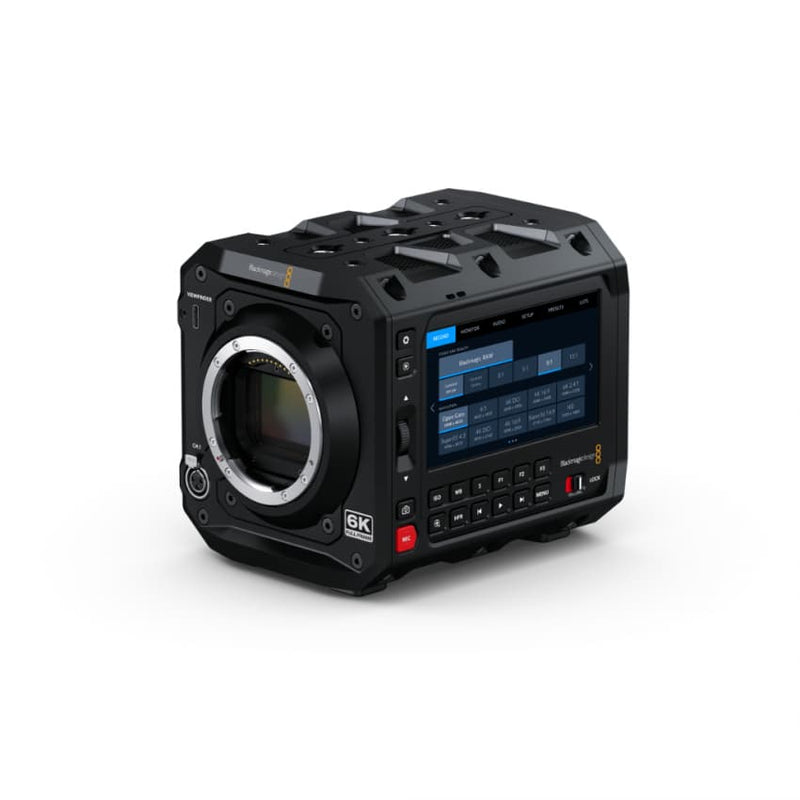

Blackmagic PYXIS 6K Cinema Camera for L-Mount – 6K Full Frame Box-Style Cinema Camera

The Blackmagic PYXIS 6K is a high-end digital cinema camera in a box-style body (Box Camera) that can be rigged freely. It features a 6K Full Frame sensor with 13 stops of dynamic range, delivering accurate skin tones and a cinematic color look. The Active L-Mount works with Leica, Panasonic and Sigma lenses, and vintage lenses can be used through adapters. It suits feature films, commercials, music videos and professional live streaming.

Key Features

6K Full Frame 36 x 24mm sensor at 6048 x 4032, with Open Gate 3:2 shooting, so you can reframe or crop freely afterward
13 Stops + Dual Native ISO 400/3200 with ISO up to 25,600 for clean images in low light
Active L-Mount works with Leica, Panasonic and Sigma lenses with focus/aperture control, or with adapters for vintage lenses
Phase Detect Autofocus with Continuous AF, Face Detect and Object Tracking modes (via Blackmagic Camera firmware 10.2 or later, with supported lenses)
4-inch HDR touchscreen, 1500 nits, Full HD clearly visible even in direct sunlight, with no need to carry an external monitor
Dual CFexpress Type B + USB-C port to record directly to cards or an external SSD
Blackmagic RAW + H.264 Proxy records RAW and proxy files simultaneously in a single take, ready to edit right away
Pre-Record up to 10 minutes captures footage from before you press record, so you do not miss the key shot (via Blackmagic Camera firmware 10.0 or later)
Built-in live streaming supports RTMP/SRT over Ethernet or a 4G/5G phone connected via USB-C
CNC Aerospace Aluminum body light yet sturdy, with 1/4" and 3/8" threaded holes all around for rigging on gimbals, cranes or drones

Specifications

Sensor	Full Frame 36 x 24mm, 6048 x 4032, with built-in Optical Low Pass Filter
Lens Mount	Active L-Mount
Dynamic Range	13 Stops
ISO	Dual Native ISO 400 / 3200 (up to 25,600)
Resolution/Frame Rate	6K Open Gate 3:2 up to 36 fps · 6K 16:9 up to 46 fps · 6K DCI 17:9 up to 48 fps · 6K 2.4:1 up to 60 fps · 4K DCI up to 60 fps · 1080p up to 120 fps
Anamorphic	4832 x 4032 (6:5) up to 36 fps
Codecs	Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3, Q5 · H.264 Proxy 1080p
Media	CFexpress Type B x 2 + USB-C for external SSD
Focus	Phase Detect AF (AF-S / AF-C / Face Detect / Object Tracking) with supported lenses
Screen	4" 1920 x 1080 LCD Touchscreen, 1500 nits
Video Output	12G-SDI x 1 (up to 2160p60) + USB-C for viewfinder
Audio	Mini XLR (Phantom Power) x 1, 3.5mm Stereo In, 3.5mm Headphone, built-in stereo mic
Connectivity	Ethernet 1Gb/s, Timecode, Tri-Sync/Black Burst, Bluetooth
Battery/Power	BP-U Series, DC 12V (supports 11–19.5V) locking 2-pin connector
Build	CNC Aerospace Aluminum
Included Software	DaVinci Resolve Studio (Activation Key)

In the Box

Blackmagic PYXIS 6K camera (L-Mount)
Lens Turret Dust Cap
PYXIS Standard Plate
PYXIS SSD Plate
60W power adapter with locking connector
DaVinci Resolve Studio Activation Key
Welcome Booklet

FAQ

Q: Does the PYXIS 6K have autofocus?
A: Yes. Updating to Blackmagic Camera firmware 10.2 or later adds Phase Detect AF with Face Detect and Object Tracking, which works with L-Mount lenses that support AF.
Q: Do I need to buy a monitor or battery separately?
A: The camera has a built-in 4-inch touchscreen and is ready to use. However, the box does not include a battery, so you need a BP-U battery or the supplied DC power adapter.
Q: Can I use Canon or vintage lenses?
A: Yes. You can use EF/M42/M-Mount to L-Mount adapters, because the L-Mount has a short flange distance that works with a wide range of adapters.

Blackmagic PYXIS 6K – a Full Frame cinema camera you can rig any way you like, with cinema-grade images in a single body
