PDMOVIE SMART Fusion LiDAR Autofocus Module for Sony E-Mount

PDMOVIE SMART Fusion LiDAR Autofocus Module for Sony E-Mount — A module thinner than a coin. Drop it into the Sony E mount and manual lenses can autofocus. No battery needed, and it sends commands wirelessly to drive the LiDAR motor

PDMOVIE SMART FUSION is a module that lets manual lenses autofocus on Sony cameras by using the camera's own AF system. It weighs only 1.2 grams and is 0.6 mm thick, thinner than a coin, nearly 100 times lighter than the first generation. It supports Wide AF, Spot Focus, Zone Focus, Focus Lock and Tracking, controlled by tapping the screen or half-pressing the shutter. No battery is required: it draws power directly from the camera with voltage and current protection, then sends focus commands over Bluetooth to drive the LiDAR motor. Installation is just twisting and pressing it into the Sony E mount, with no modification to the camera body. It works with manual E-mount lenses and with PL cinema lenses through an adapter, and it uses the LIVE AIR 4 SMART lens database together with AI to simulate real lens characteristics.

Key Features

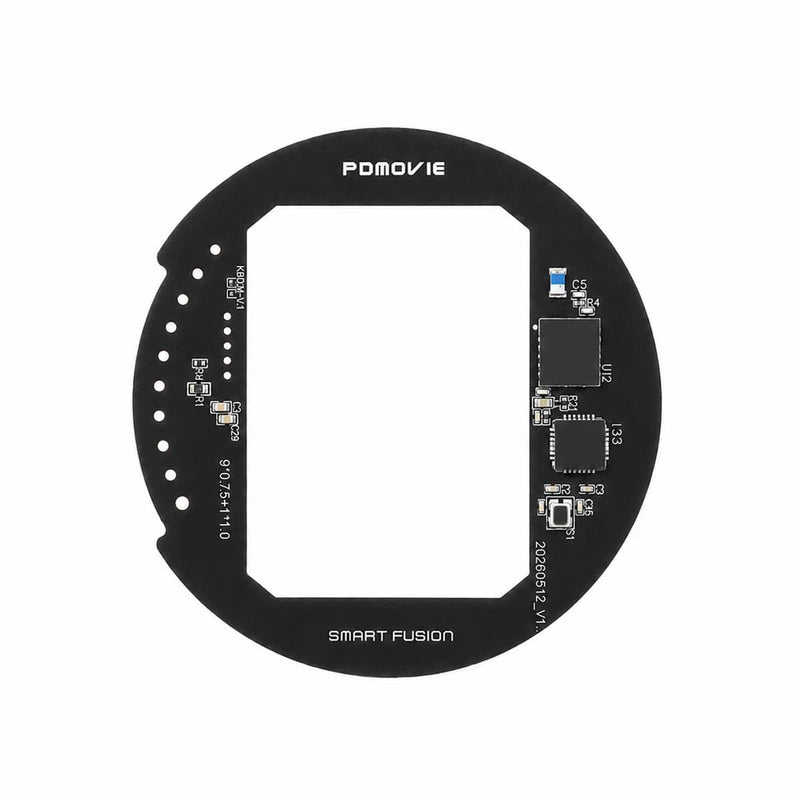

• The thinnest and lightest in its class — weighs only 1.2 grams and is just 0.6 mm thick, thinner than a coin, nearly 100 times lighter than the first generation.
• Autofocus like a native lens — supports Wide AF, Spot Focus, Zone Focus, Focus Lock and Tracking. Focus by tapping the screen or half-pressing the shutter.

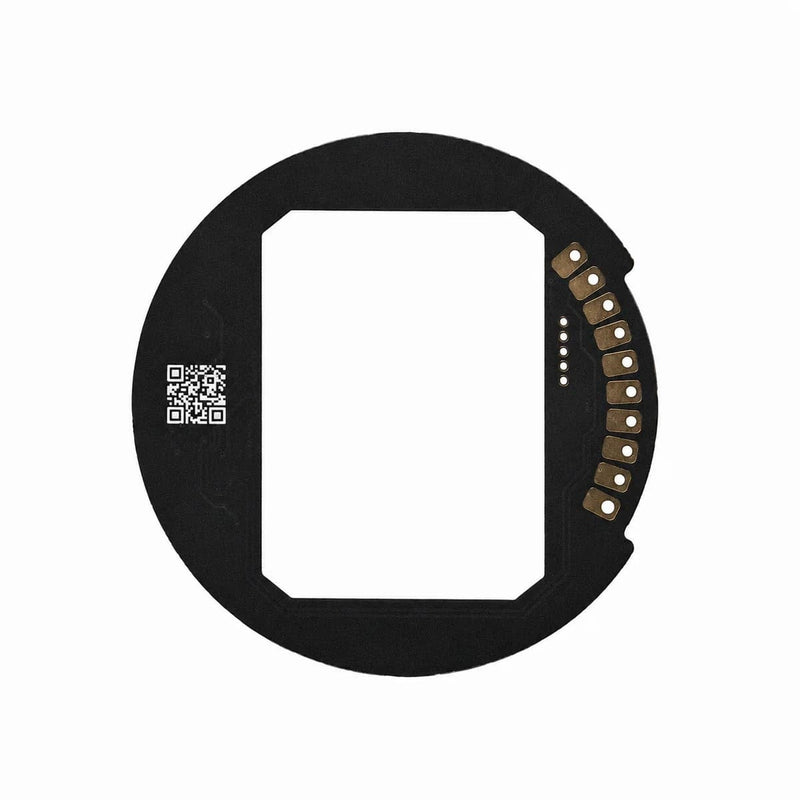

• No battery needed — takes power directly from the camera and starts working automatically as soon as the camera is turned on, with voltage/current protection and very low power consumption.

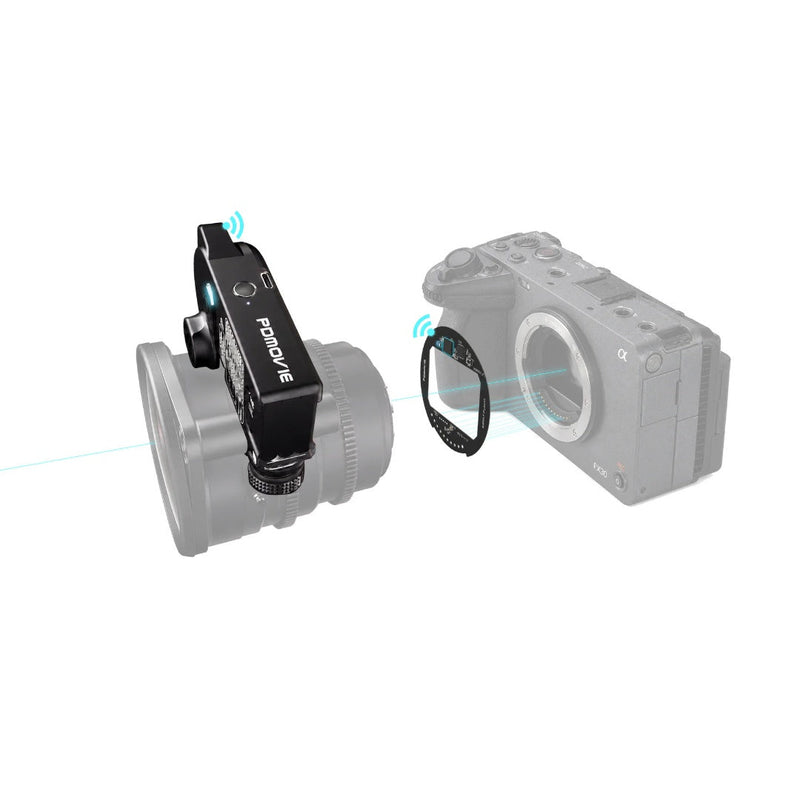

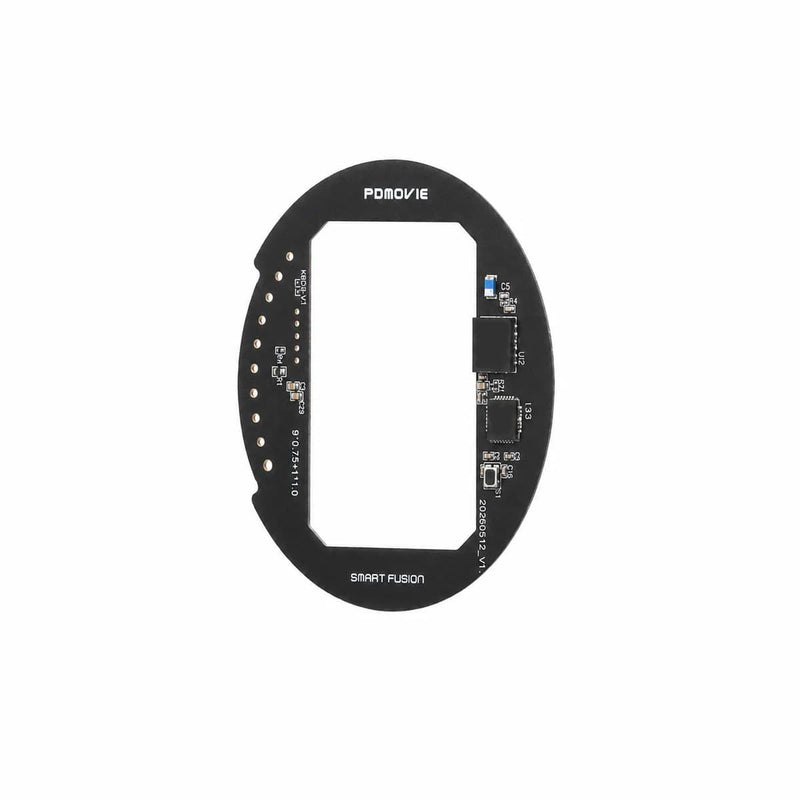

• Bluetooth wireless signal — connects to the camera first, then sends focus commands wirelessly to drive the LiDAR motor through the built-in antenna and Bluetooth module.

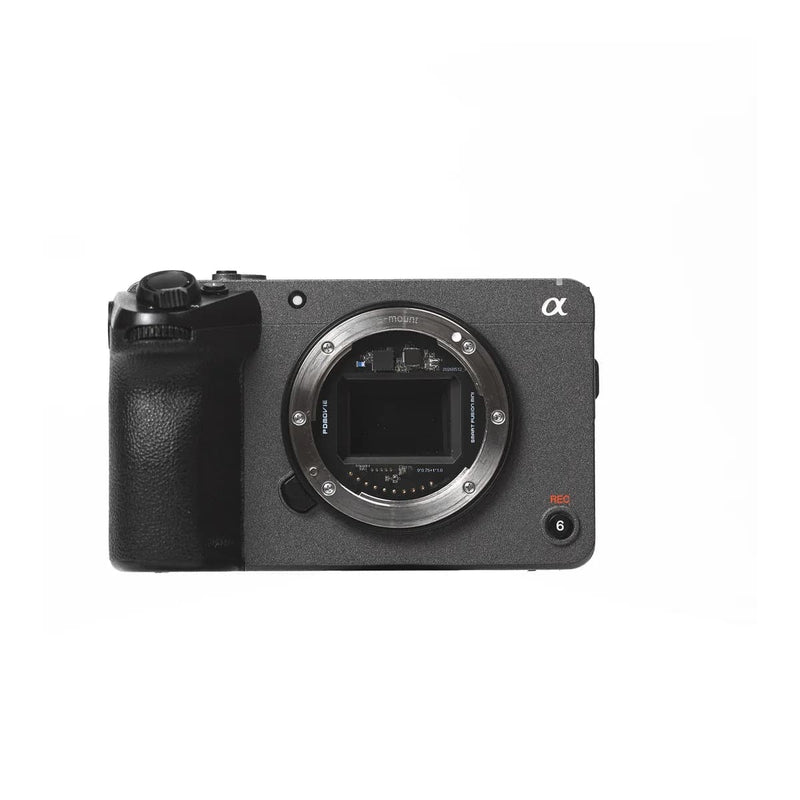

• Easy twist-and-press installation — just place it in the Sony E mount. No modification to the camera structure, and it does not affect mounting a lens or adapter.
• Works with a wide range of lenses — use manual E-mount lenses or PL cinema lenses through an E-to-PL adapter.
• Lens database + smart AI — uses the LIVE AIR 4 SMART lens database and AI to simulate real lens characteristics (the motor learns the lens range once after power-on).

Best For

• Owners of a LIVE AIR 4 SMART motor
• Turning manual lenses into autofocus lenses
• Using PL lenses with AF on Sony cameras
• Solo video shooting

Specifications

Kit Type

• SMART Fusion Only
• SMART Fusion Kit

FAQ

• Q: Do I need a motor?
  A: Yes. SMART FUSION receives commands from the camera, but the part that turns the focus ring is the LIVE AIR 4 SMART motor. If you do not have a motor yet, choose the Kit option.
• Q: With no battery, does it drain the camera a lot?
  A: Power consumption is very low, and it has built-in voltage and current protection.
• Q: Can it be used with PL cinema lenses?
  A: Yes. Mount the PL lens through a PL-to-E adapter and SMART FUSION still communicates with the camera as normal, because it sits at the camera mount, not on the lens.
• Q: Can it be used with other camera brands?
  A: The SMART FUSION system is designed specifically for Sony E-mount cameras, because it needs to read focus commands from the Sony camera through the mount contacts. Other brands can still use the LIVE AIR 4 SMART LiDAR motor or wireless manual focus, but without the camera's AF system.

See more focus accessories → Gear & Accessories
