Atomos TX-RX Wireless 4K/HD Video Transmitter & Receiver Set

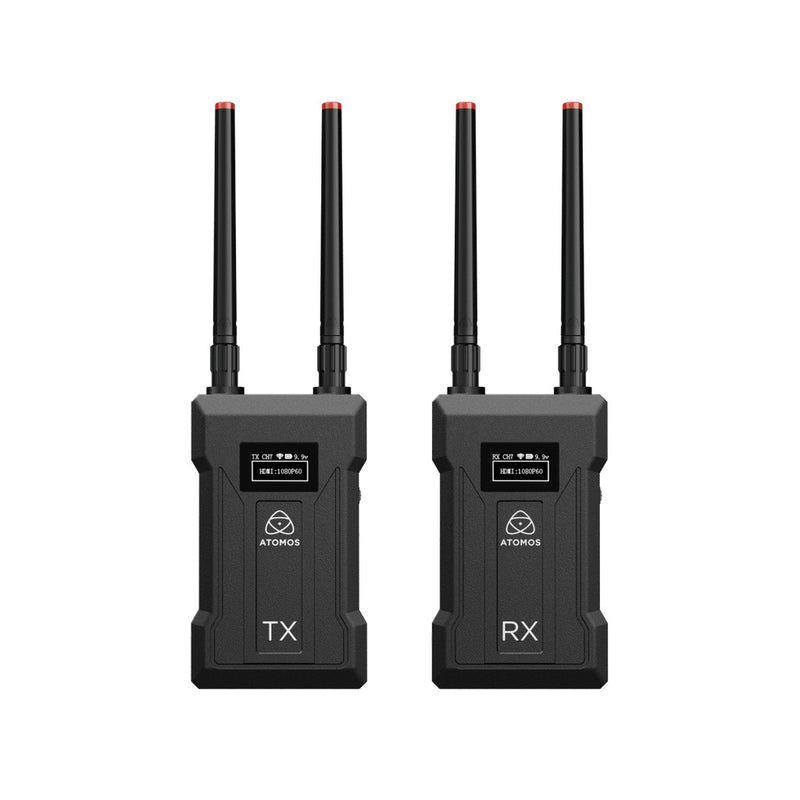

The Atomos TX-RX wireless video set includes a transmitter (TX) and a receiver (RX). It sends 4K video over HDMI and Full HD over SDI up to 300 meters with a low delay of just 0.06 seconds. It is well suited to viewing camera video wirelessly on a director's monitor, a client monitor or another Atomos monitor, without running cables across the set.

Key Features

• Transmits 4Kp30 (HDMI) / 1080p60 (SDI) – sharp images with accurate color, suited to high-quality monitoring
• Low delay of 0.06 seconds – view video in real time, follow focus and frame accurately
• Up to 300 meters range (unobstructed / Line-of-Sight)
• Supports up to 4 receivers per transmitter – share video with the director, focus team and client at the same time
• 5GHz Wi-Fi with AES-128 encryption and automatic channel selection, providing good interference protection even in crowded radio environments

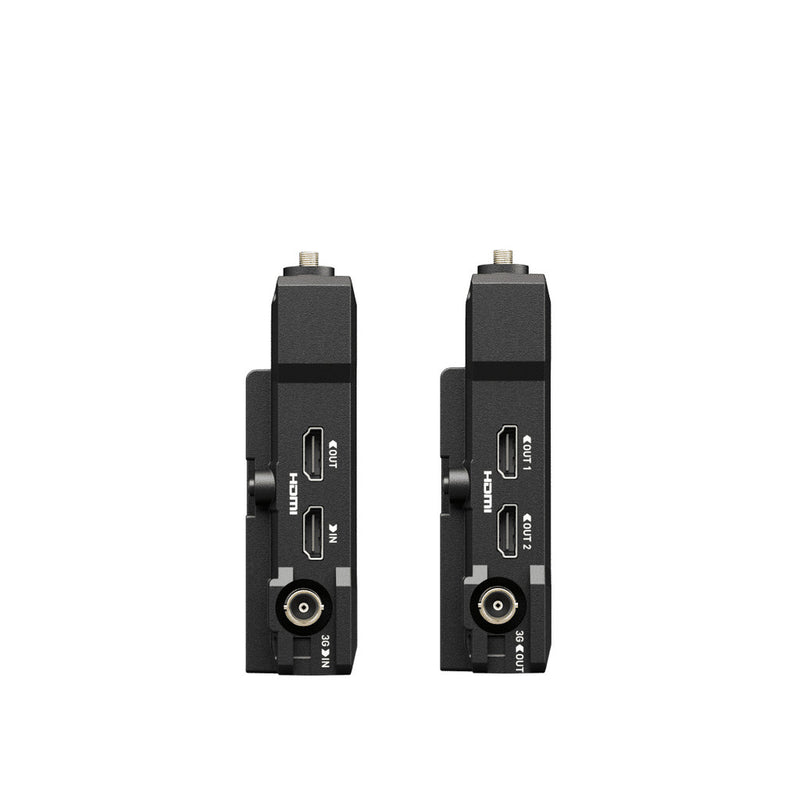

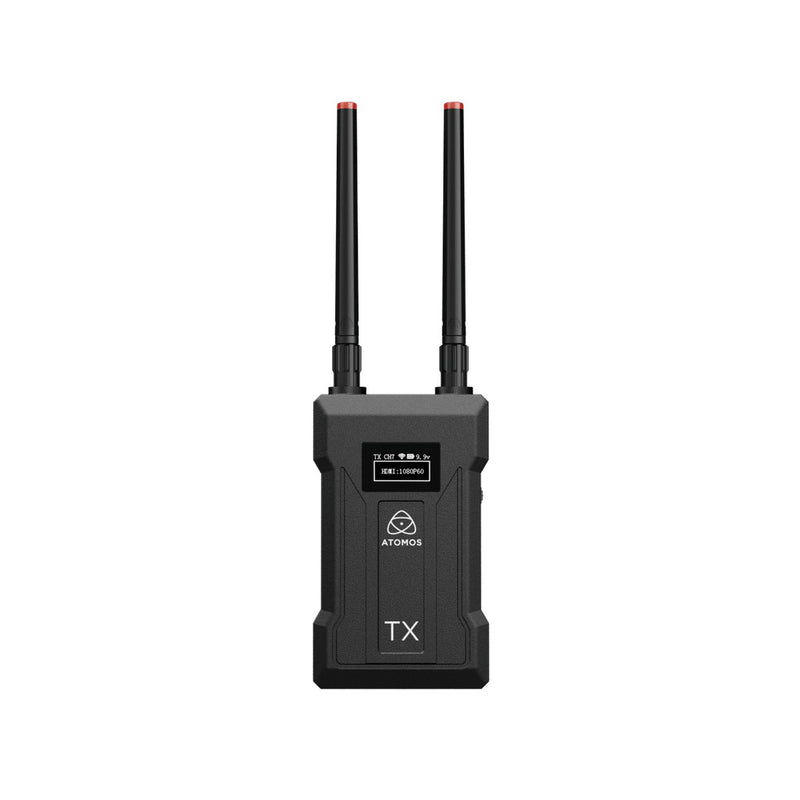

• Transmitter (TX) accepts HDMI / 3G-SDI input with an HDMI Loop-out so you can keep an on-camera monitor connected

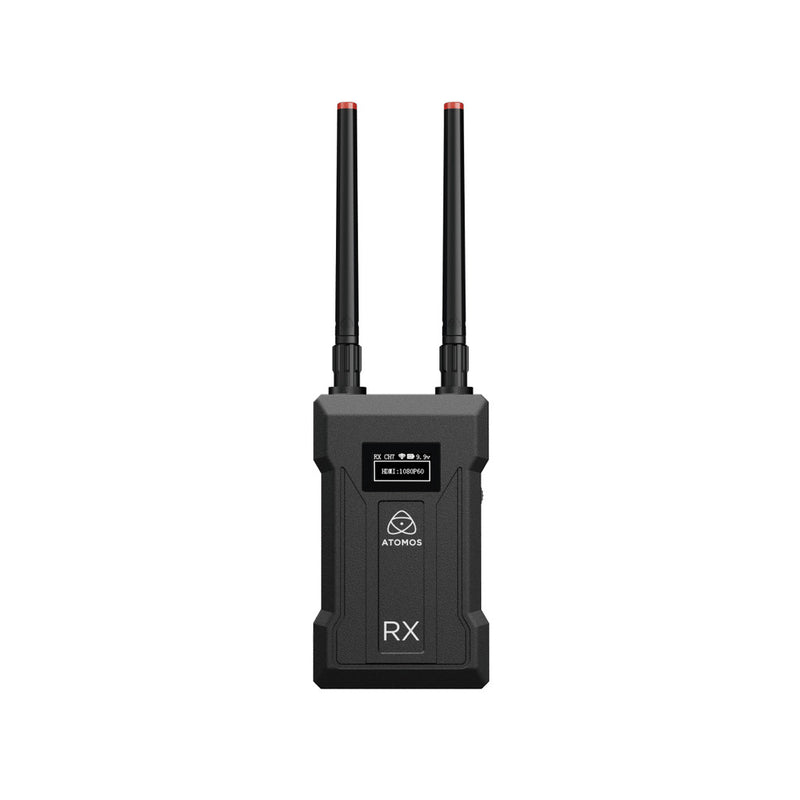

• Receiver (RX) has 2 HDMI outputs + 1 3G-SDI output, so you can connect several monitors at once
• Compact design weighing just 231 g with multiple power options: NP-F battery, USB-C or DC-IN

Specifications

In the Box (TX-RX Set)

• Wireless Video Transmitter x 1
• Wireless Video Receiver x 1
• USB-A to USB-C 2.0 cable (1 m) x 4
• Wi-Fi Antenna x 10
• Antenna Tips x 2
• 1/4-inch threaded mount x 1
• Quick Start Guide x 1
