Hollyland Pyro 7 + Pyro S Wireless Monitor & Video Transmission Kit

Hollyland Pyro 7 + Pyro S Wireless Monitor & Video Transmission Kit — Pyro 7 monitor with the Pyro S transmission set

This kit combines the 7-inch Pyro 7 monitor, which works as either a transmitter or a receiver, with the Pyro S transmission set (transmitter + receiver). It sends 4K30 video over HDMI/SDI up to 400 meters and lets you view the image at two points at the same time.

Key Features

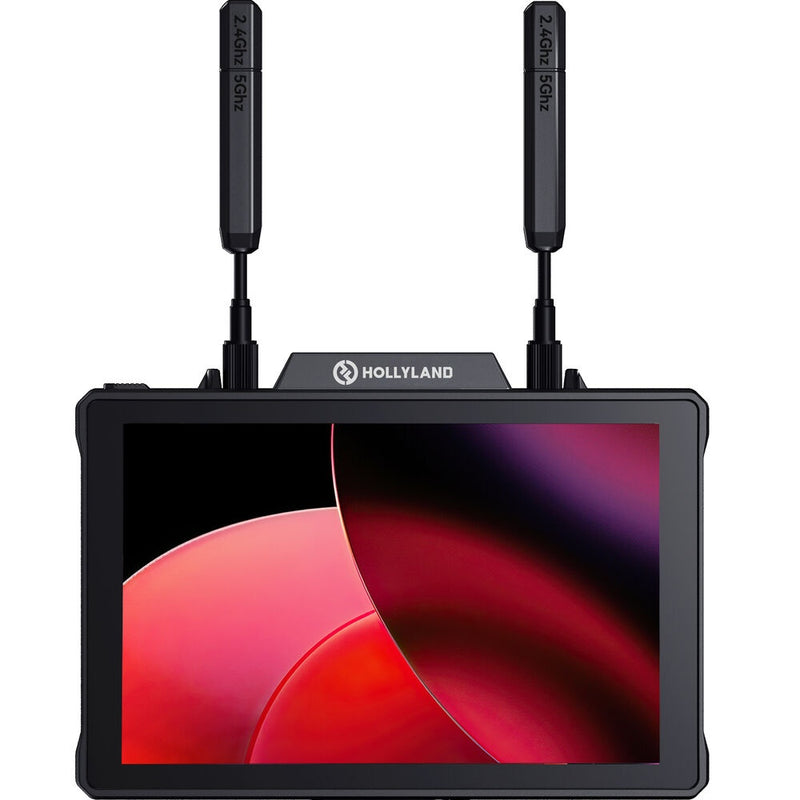

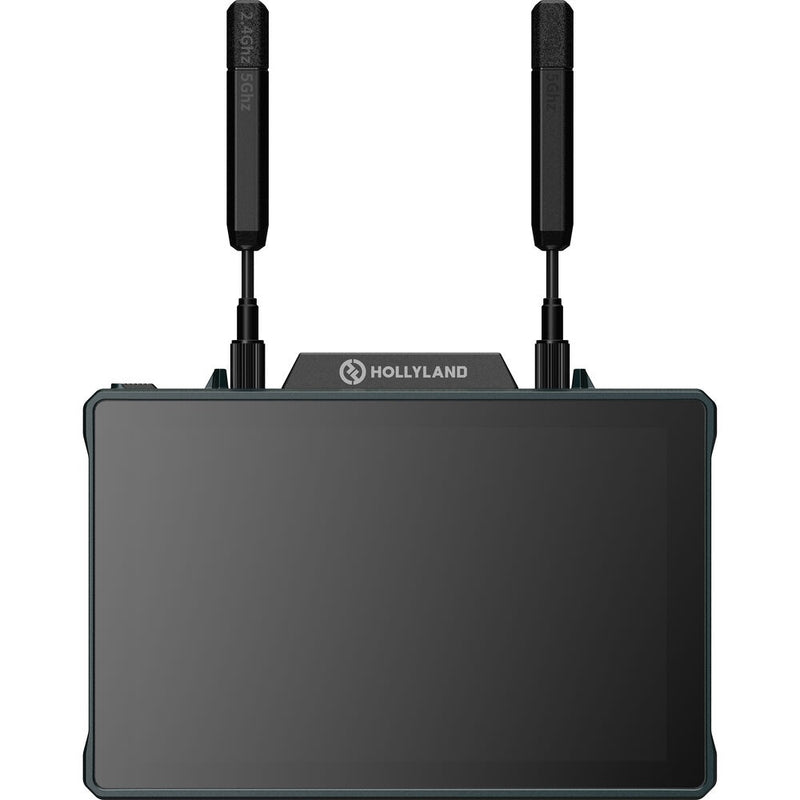

• This kit has a dedicated transmitter/receiver set (Pyro S) for the main video transmission, plus an additional transceiving monitor (Pyro 7) that can serve as another receiver, or as a backup transmitter/monitor as needed. Hollyland Pyro 7 Wireless Transceiving Monitor:
• Works as a transmitter, a receiver and a 7-inch touchscreen monitor (1920 x 1200 resolution, 1200 nits brightness)
• Dual-band 2.4 GHz and 5 GHz wireless transmission with Auto Dual-Band Hopping (ADH)
• Maximum transmission range of 1300 feet (400 meters) with latency of about 60ms
• Sends to up to 4 receivers when Broadcast mode is on
• HDMI and SDI Input/Output/Loopout connections
• Monitoring tools such as Waveform and Vectorscope, LUT support, Focus Assist and more
• Supports RTMP Streaming and recording to an SD card

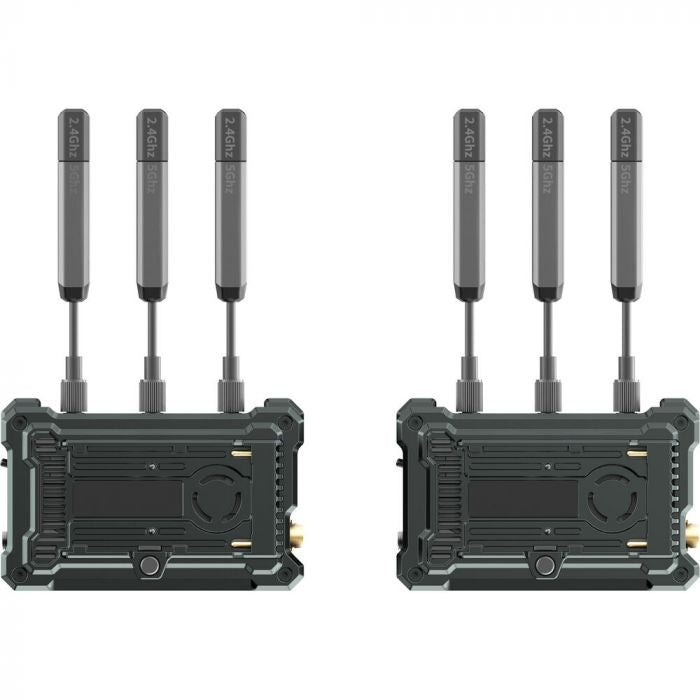

• Hollyland Pyro S 4K Wireless Video Transmission System (transmitter and receiver):
• Dedicated wireless video transmitter and receiver set
• Supports both HDMI and SDI Input/Output
• Transmits video up to 4K30fps at a range of up to 1300 feet (400 meters) with low latency of about 50ms
• Uses dual-band 2.4 GHz & 5 GHz with Auto Frequency Hopping
• One transmitter can send to up to 4 receivers at the same time
• Supports UVC and RTMP Streaming

Best For

• Directors and clients watching a real-time image on set
• Focus pullers and video assist
• Live broadcast, events and multi-cam work
• Gimbal mounting without running HDMI/SDI cables

Specifications

In the Box

• 1 x Hollyland Pyro 7 Wireless Transceiving Monitor
• 1 x Hollyland Pyro S Wireless Video Transmitter
• 1 x Hollyland Pyro S Wireless Video Receiver
• x1 Multiple Antennas for both units
• x1 Power cables and adapters
• x1 SD Card
• x1 Mounting accessories
• x1 Carrying case

FAQ

• Q: What is the difference between the Broadcast modes?
  A: Broadcast on: one transmitter can send to 4 receivers, with a 200 meter range. Broadcast off: it can send to 2 receivers + 2 mobile devices, with a 400 meter range.
• Q: How can the kit be used?
  A: The Pyro S TX on the camera can send the image to the Pyro S RX and the Pyro 7 monitor at the same time, or you can switch the Pyro 7 to act as a backup transmitter.
